BigMow Classic Principal Frame

store url
Part no.
Description
https://store.amsrobotics.co.uk/product/belrobotics/br11591kitcableliftsensorswichealuplatebigmow
BR11591

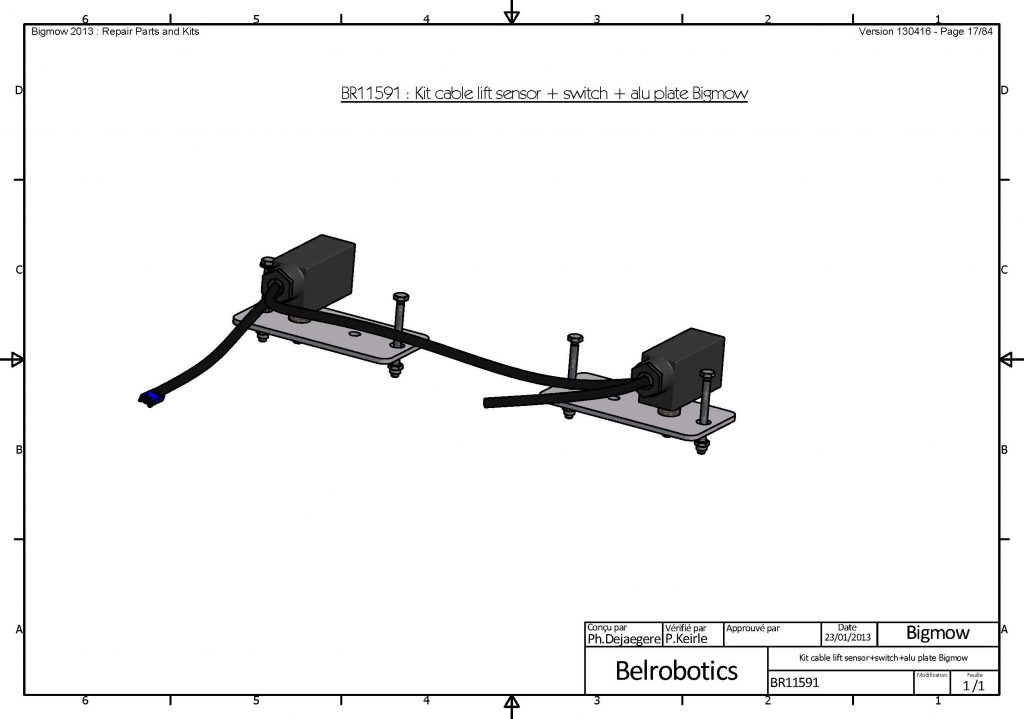

Kit cable lift sensor + swiche/alu plate BIGMOW
https://store.amsrobotics.co.uk/product/belrobotics/br11590kitupgradeliftsensorleftrightsides
BR11590
Kit UPGRADE Lift sensor LEFT + RIGHT sides
https://store.amsrobotics.co.uk/product/belrobotics/br11505switchforliftsensorandaccesscoverpm
BR11505
Switch for lift sensor and access cover PM
https://store.amsrobotics.co.uk/product/belrobotics/br11501pressionspring1x10x25zincplatedliftsensbmpm
BR11501
Pression spring 1x10x25 zinc plated lift sensBM/PM
--

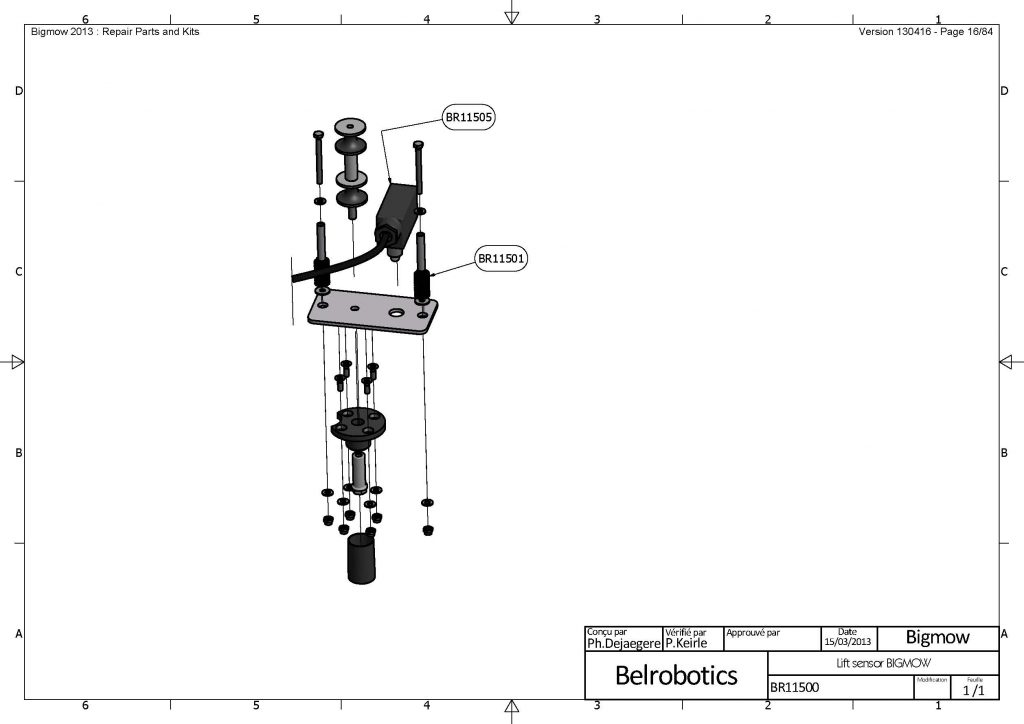

Lift sensor Bigmow
https://store.amsrobotics.co.uk/product/belrobotics/br11463kitsmallbeltforcuttingheightadjustment
BR11463
Kit small belt for cutting height adjustment
https://store.amsrobotics.co.uk/product/belrobotics/br11462kitbigbeltforcuttingheightadjustment
BR11462
Kit big belt for cutting height adjustment
https://store.amsrobotics.co.uk/product/belrobotics/br11418lockingboltshortcuttingheightbmgmt21
BR11418
Locking bolt -short- cutting height BM, GMT2&1
--

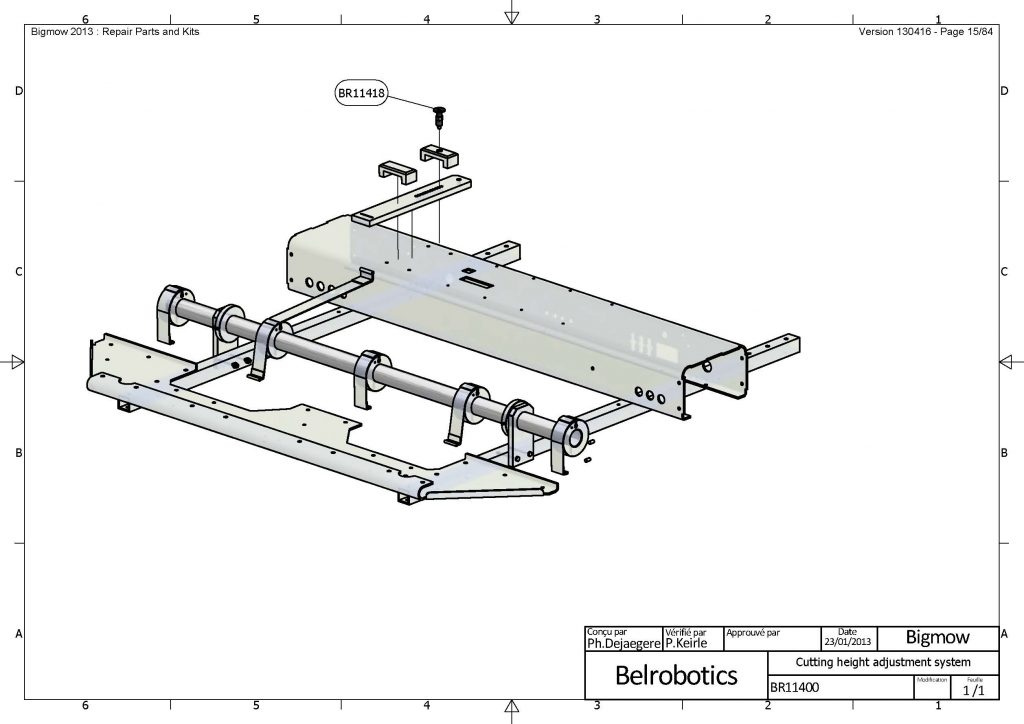

Cutting height adjustment system Bigmow
https://store.amsrobotics.co.uk/product/belrobotics/br11393kitreceptacleanderson8wbmbppneumbumper
BR11393
Kit Receptacle ANDERSON 8 w. BM/BP(pneum bumper)
https://store.amsrobotics.co.uk/product/belrobotics/br11392kitreceptacleanderson8wbmbpelectbumper
BR11392
Kit Receptacle ANDERSON 8 w. BM/BP(elect bumper)
https://store.amsrobotics.co.uk/product/belrobotics/br11336stickeri0yellowverticallabelonoff
BR11336
Sticker I/0 yellow - vertical
https://store.amsrobotics.co.uk/product/belrobotics/br11335-main-toggle-switch-25a-30vdc-dubble-pole
BR11335
Main toggle switch 25A/30VDC (dubble pole)
https://store.amsrobotics.co.uk/product/belrobotics/br11334bridgerectifier35a1000v
BR11334
Bridge rectifier 35A 1000V
https://store.amsrobotics.co.uk/product/belrobotics/br11333spacerforpcboardrichcomscbsmm3201
BR11333
Spacer for pc board RICHCO MSCBSM-M3-2-01
https://store.amsrobotics.co.uk/product/belrobotics/br11328capfordatasocketlumberg0381
BR11328
Cap for data socket - Lumberg 0381
--

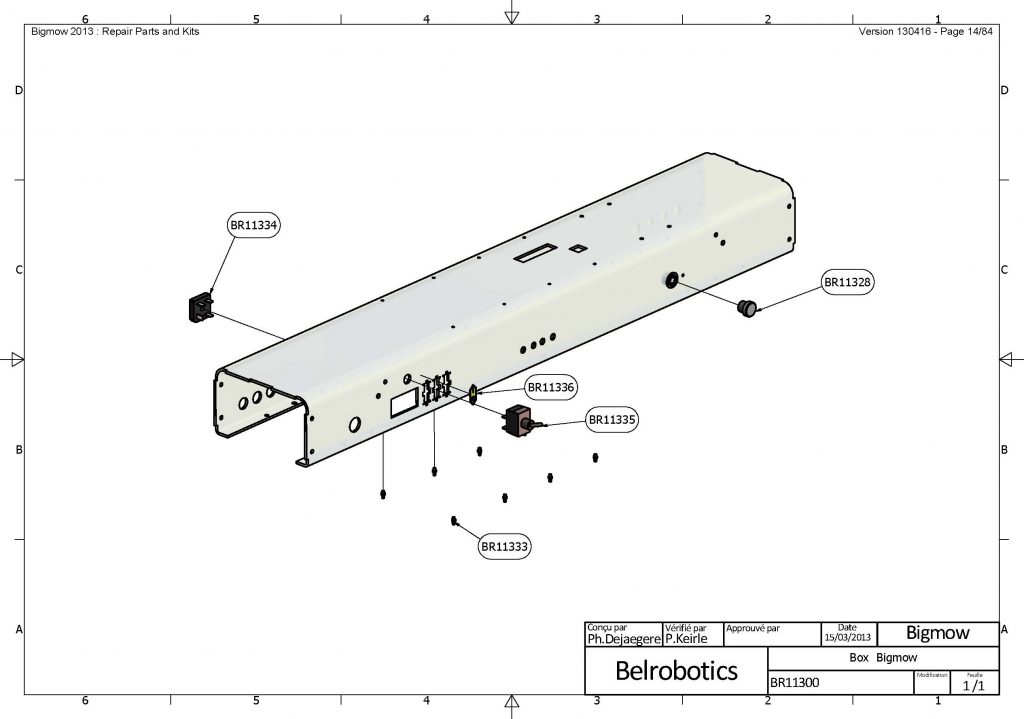

Box Bigmow
https://store.amsrobotics.co.uk/product/belrobotics/br11293kitfrontwheelssuspension2mmwith2wheels
BR11293

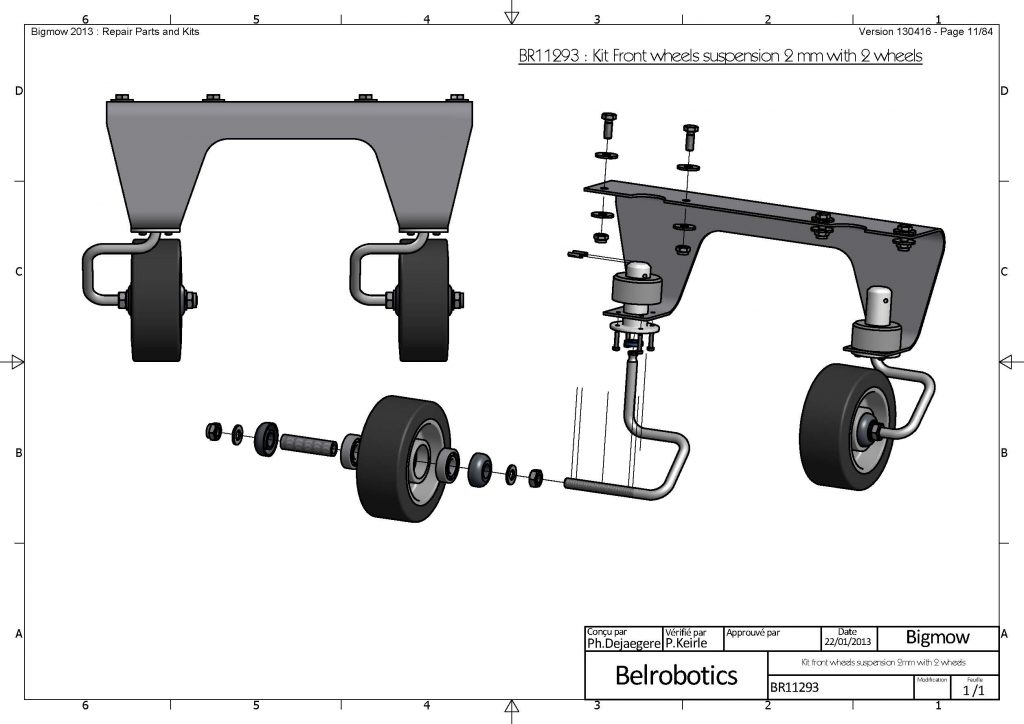

Kit Front wheels suspension 2 mm with 2 wheels
BR11292

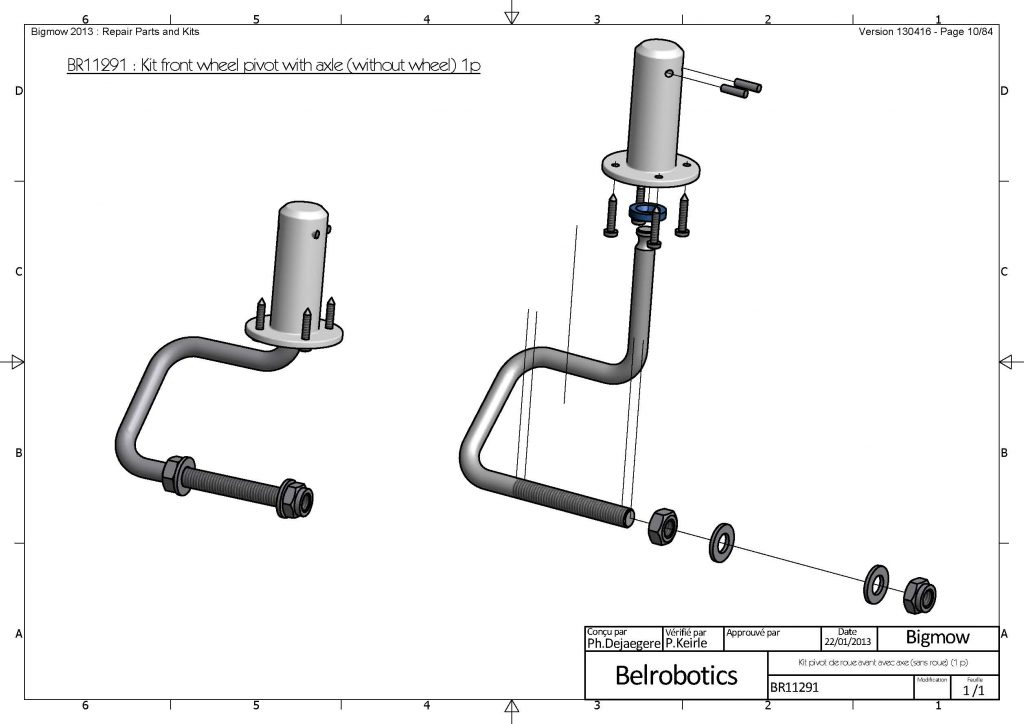

Kit front wheel pivot EXTENDED with axle (without wheel) 1p
https://store.amsrobotics.co.uk/product/belrobotics/br11229-front-wheel-diameter-100-in-plastic-grey
BR11229
Front wheel diameter 100 in plastic grey
https://store.amsrobotics.co.uk/product/belrobotics/br11210counterweightfrontwheelpivot450gr1piece
BR11210
Hub front wheel PM2.0 (Stainless steel)
https://store.amsrobotics.co.uk/product/belrobotics/br11204-reinforcement-pivot-front-whell-pom-white
BR11204
Reinforcement pivot front whell POM white
https://store.amsrobotics.co.uk/product/belrobotics/br11201frontsuspension2mmspringstainlesssteel
BR11201
Front suspension 2 mm - spring stainless steel
--

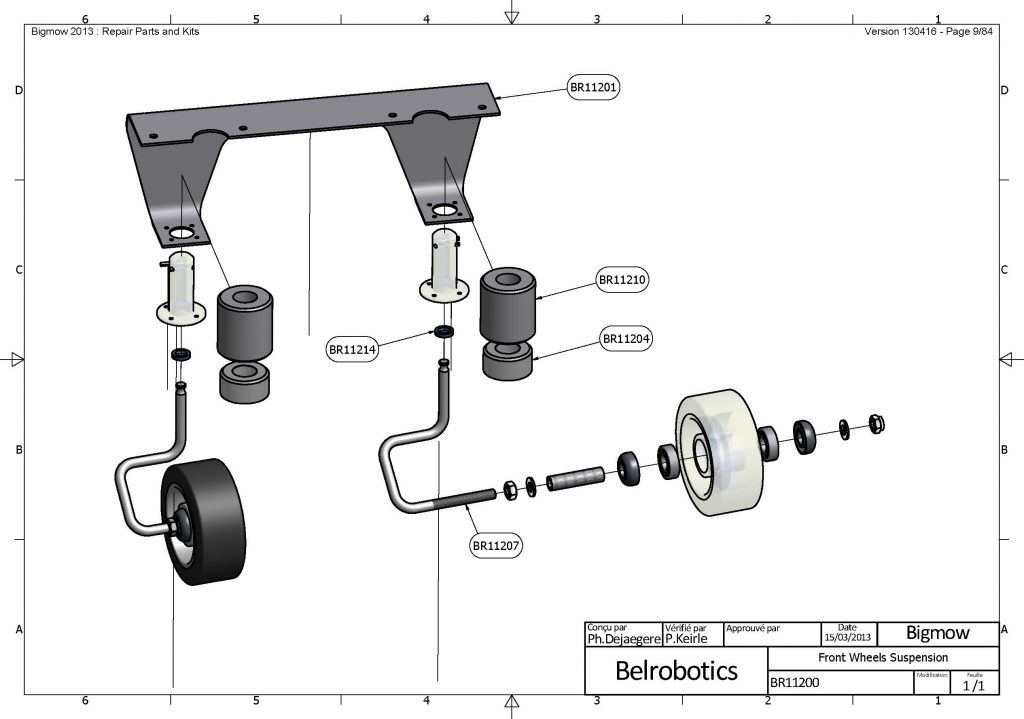

Front wheels suspension Complete Bigmow
https://store.amsrobotics.co.uk/product/belrobotics/br11199kitcoilbmregularsignalsupportstainlesssteel
BR11199
Kit Coil BM REGULAR SIGNAL+support stainless steel
https://store.amsrobotics.co.uk/product/belrobotics/br11198kitcoilbmregularsignal
BR11198
Kit Coil BM REGULAR SIGNAL
https://store.amsrobotics.co.uk/product/belrobotics/br11196kitcoilbmnewsignalsupportstainlesssteel
BR11196

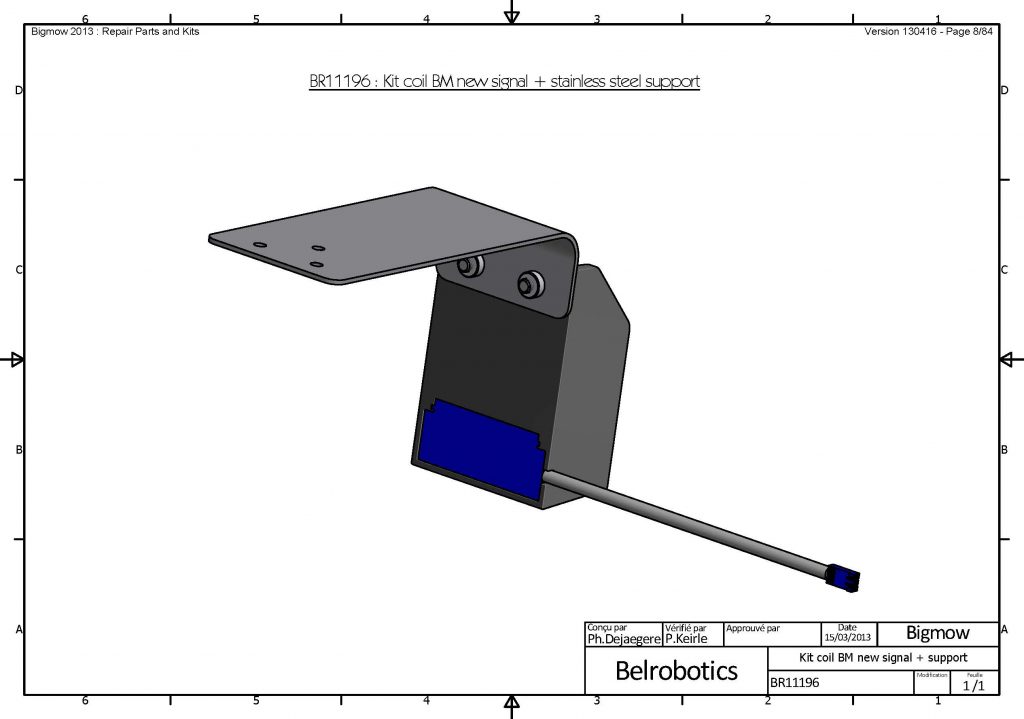

Kit Coil BM NEW SIGNAL + support stainless steel
https://store.amsrobotics.co.uk/product/belrobotics/br11195kitcoilbmnewsignal
BR11195

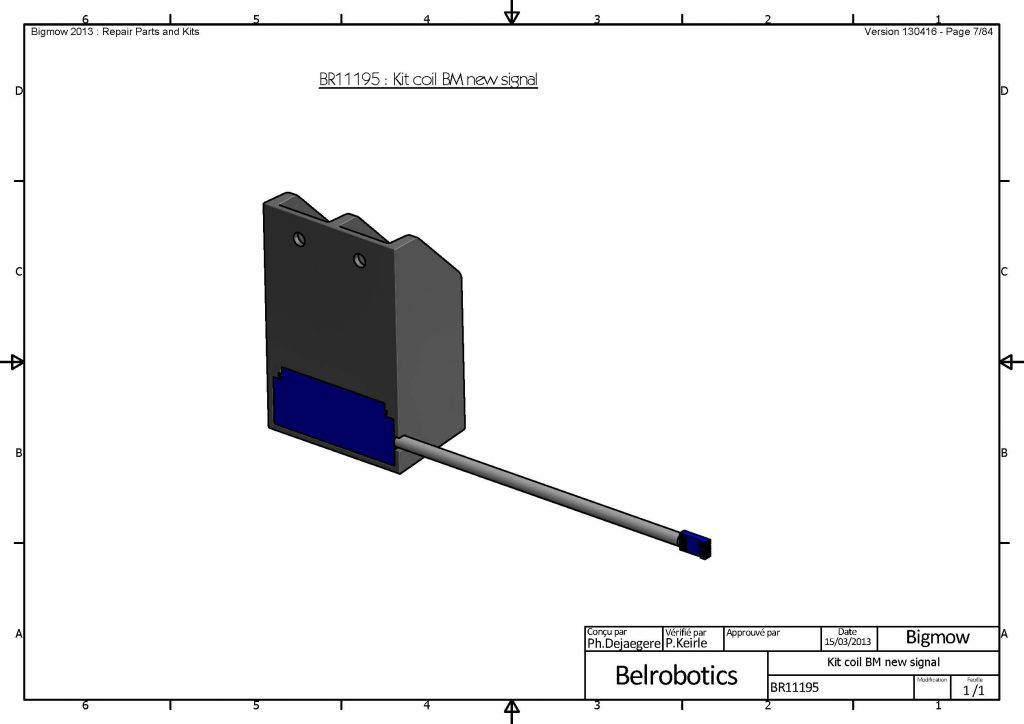

Kit Coil BM NEW SIGNAL
https://store.amsrobotics.co.uk/product/belrobotics/br11194kitcontactmagnetmk11withconnector
BR11194

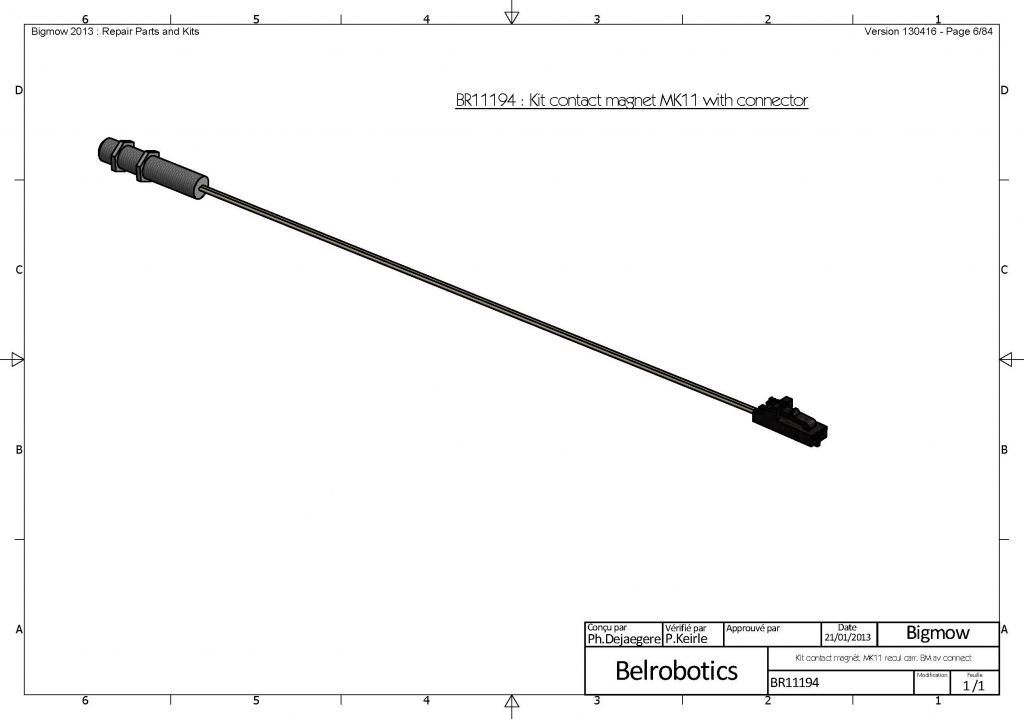

Kit contact magnet MK11 with connector
https://store.amsrobotics.co.uk/product/belrobotics/br11193gauchelkitmovingbodysupportleftmagnet
BR11193_GAUCHE

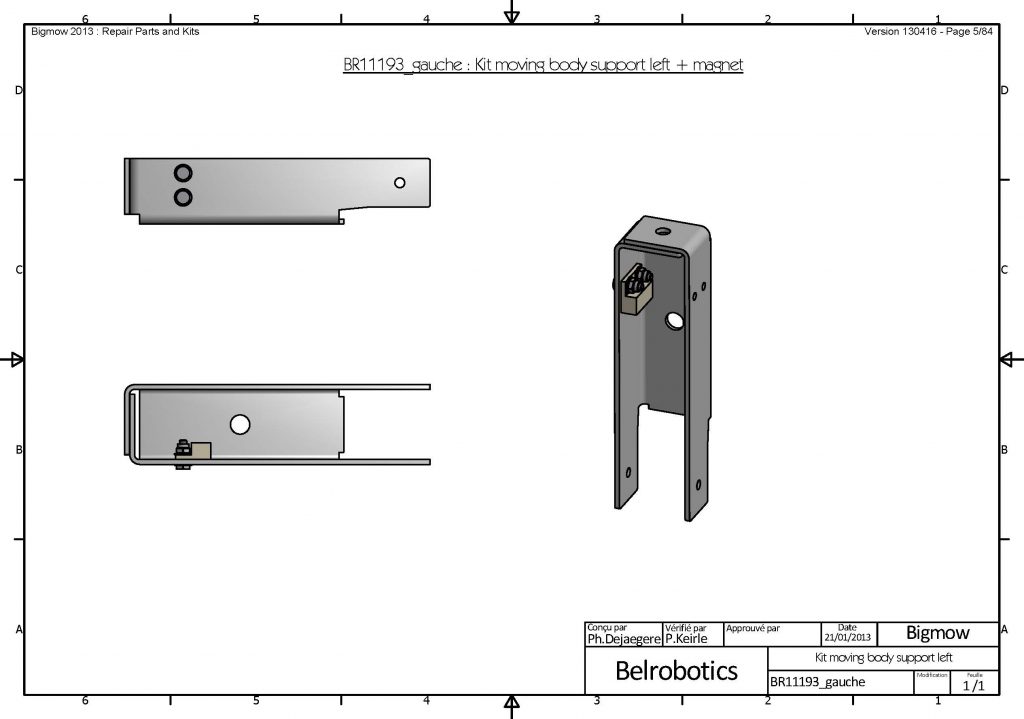

Kit moving body support left + magnet
https://store.amsrobotics.co.uk/product/belrobotics/br11193droitrkitmovingbodysupportrightmagnet
BR11193_DROIT

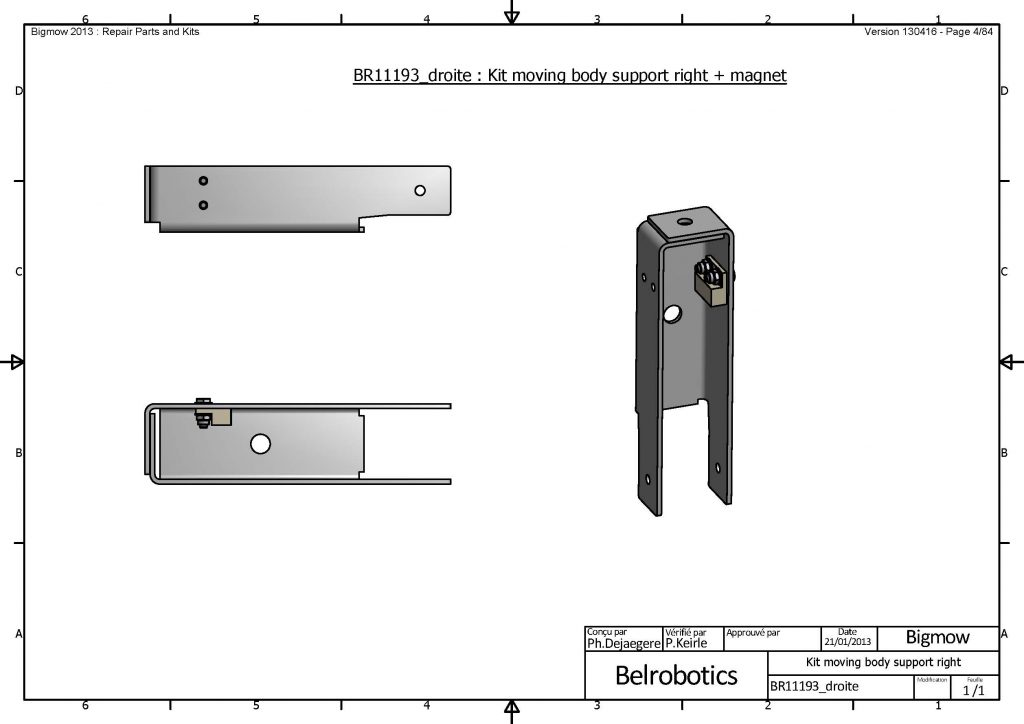

Kit moving body support right + magnet
https://store.amsrobotics.co.uk/product/belrobotics/br11192kit2chargingresistorbmoncoolingplate
BR11192
Kit 2 charging resistor BM on cooling plate
https://store.amsrobotics.co.uk/product/belrobotics/br11189kit1chargingresistorbmoncoolingplate
BR11189
Kit 1 charging resistor BM on cooling plate
https://store.amsrobotics.co.uk/product/belrobotics/br11154protectionblackcoverforfrontscrewliftsensor
BR11154
Protection black cover for front screw lift sensor
https://store.amsrobotics.co.uk/product/belrobotics/br11153fixingsrewfrontsilentblocmachwithliftsensor
BR11153
Fixing screw front silentbloc-mach with lift sensor
https://store.amsrobotics.co.uk/product/belrobotics/br11139brushesforbackwheelleftbmgm
BR11139
Brushes for back wheel Left BM/GM
https://store.amsrobotics.co.uk/product/belrobotics/br11138brushesforbackwheelrightbmgm
BR11138
Brushes for back wheel Right BM/GM
https://store.amsrobotics.co.uk/product/belrobotics/br11122permanentmagnetmederm13
BR11122
Permanent Magnet MEDER M13
https://store.amsrobotics.co.uk/product/belrobotics/br11120insulationsleeve62x79x2blackplastic
BR11120
Insulation sleeve 6.2x7.9x2 - black plastic
https://store.amsrobotics.co.uk/product/belrobotics/br11118springcompressiondin209515x12x40zincplateds
BR11118
Spring compression DIN2095 1.5x12x40 zinc plated s
https://store.amsrobotics.co.uk/product/belrobotics/br11114tube4x6x29mmstainlesssteel
BR11114
Tube 4x6x29 mm - stainless steel
https://store.amsrobotics.co.uk/product/belrobotics/br11113spacer6x9x11mmplastic
BR11113
Spacer 6x9x11 mm - plastic
https://store.amsrobotics.co.uk/product/belrobotics/br11104frontsheetforbigmowaluminium
BR11104
Front sheet for Bigmow - aluminium
--

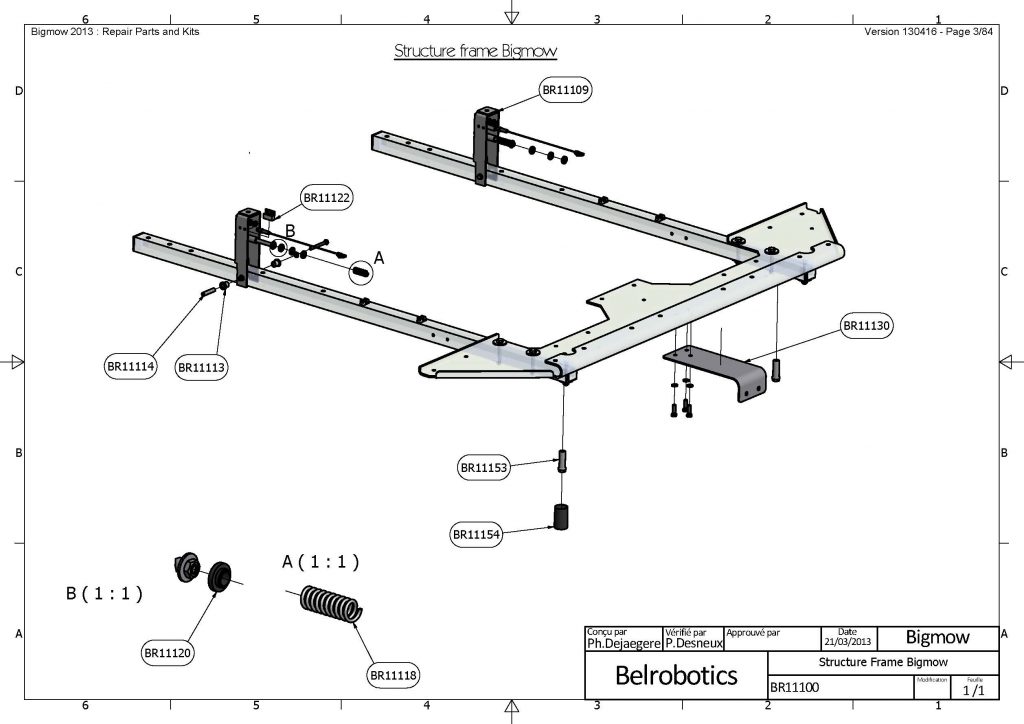

Structure Frame Bigmow
