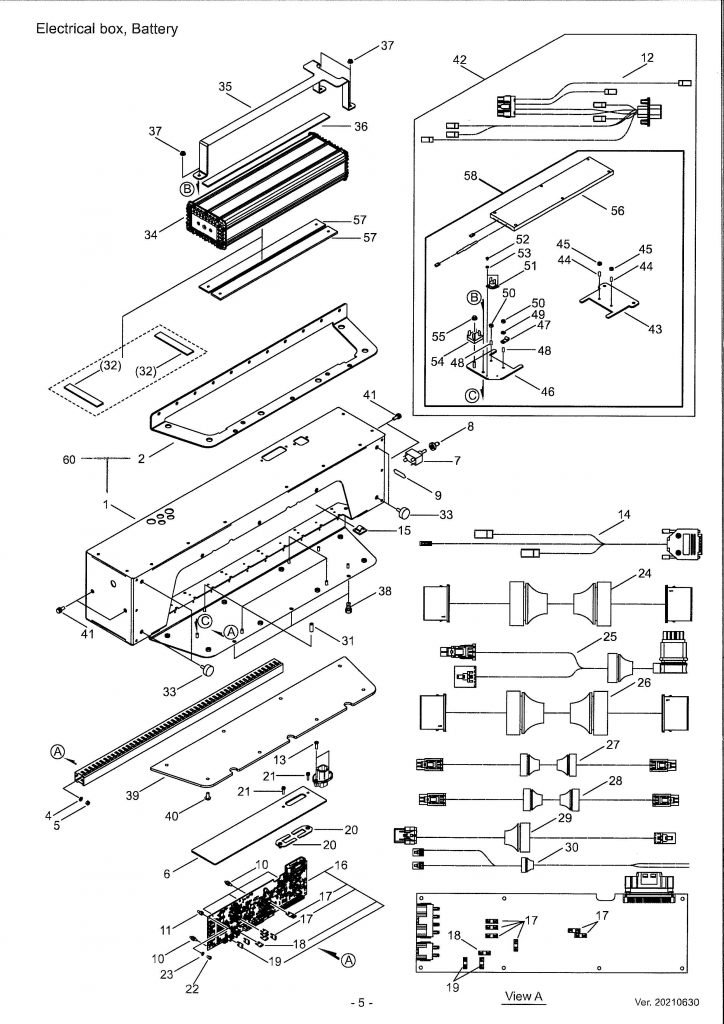

Ref. | store url | Present | Part no. | Description | Info | Qty | Comments |
|---|---|---|---|---|---|---|---|
57 | https://store.amsrobotics.co.uk/product/belrobotics/yb00000134-Resistor-contact- | Yes | YB00000134 | Resistor contact | 2 | ||
56 | https://store.amsrobotics.co.uk/product/belrobotics/yb03300125-Heater-resistor-500W-with-fuse | Yes | YB03300125 | Heater resistor | 500W with fuse | 1 | |
55 | https://store.amsrobotics.co.uk/product/belrobotics/yb80505000nutm5 | Yes | YB80505000 | Nut M5 | Flanged | 1 | |
54 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb03900038 | Yes | YB03900038 | Bridge rectifier | 35A 1000V | 1 | |
53 | https://store.amsrobotics.co.uk/product/belrobotics/yb70003000washerm3 | Yes | YB70003000 | Washer M3 | 2 | ||
52 | https://store.amsrobotics.co.uk/product/belrobotics/yb50903004-Screw-M3x4-Hex-socket | Yes | YB50903004 | Screw M3x4 | Hex socket | 2 | |
51 | https://store.amsrobotics.co.uk/product/belrobotics/yb03900037-Thermostat-20°-C | Yes | YB03900037 | Thermostat | 20° C | 1 | |
50 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb80205000 | Yes | YB80205000 | Nut M5 | 2 | ||
49 | https://store.amsrobotics.co.uk/product/belrobotics/yb70005000washerm5 | Yes | YB70005000 | Washer M5 | 1 | ||
48 | https://store.amsrobotics.co.uk/product/belrobotics/yb53705012-screw-m5x12-w-o-head | Yes | YB53705012 | Screw M5x12 | w/o head | 2 | |
47 | https://store.amsrobotics.co.uk/product/belrobotics/yb00200003-Clip-cable-fitting-Diameter-4.8mm | Yes | YB00200003 | Clip cable fitting | Diameter 4.8mm | 1 | |
46 | https://store.amsrobotics.co.uk/product/belrobotics/yb00000133-Resistor-support-Left | Yes | YB00000133 | Resistor support | Left | 1 | |
45 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb80205000 | Yes | YB80205000 | Nut M5 | 2 | ||
44 | https://store.amsrobotics.co.uk/product/belrobotics/yb53705012-screw-m5x12-w-o-head | Yes | YB53705012 | Screw M5x12 | w/o head | 2 | |
43 | https://store.amsrobotics.co.uk/product/belrobotics/yb00000132-Resistor-support-Right | Yes | YB00000132 | Resistor support | Right | 1 | |
42 | https://store.amsrobotics.co.uk/product/belrobotics/heaterbatterykitbprp1200withcableforupdate | Yes | YB06200038 | Heater battery | Upgrade kit | 1 | includes items 43-57 & 12 |
41 | https://store.amsrobotics.co.uk/product/belrobotics/yb52706016screwm6x16 | Yes | YB52706016 | Screw M6x16 | 4 | ||
40 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb50806014 | Yes | YB50806014 | Screw M6x14 | Hex socket,wash.. | 8 | |
39 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb01500013 | Yes | YB01500013 | Door protection | 1 | ||
38 | https://store.amsrobotics.co.uk/product/belrobotics/yb52706016screwm6x16 | Yes | YB52706016 | Screw M6x16 | 3 | ||
37 | https://store.amsrobotics.co.uk/product/belrobotics/yb80505000nutm5 | Yes | YB80505000 | Nut M5 | Flanged | 3 | |
36 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb01000009 | Yes | YB01000009 | Rubber | Battery 405x20 | 1 | Need to cut 30mm both sides when using |
35 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb00000088 | Yes | YB00000088 | Battery belt | 1 | ||
34 | https://store.amsrobotics.co.uk/product/belrobotics/yb03100001battery | Yes | YB03100001 | Battery | Lithium 19.2Ah | 1 | |
33 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb06220051 | Yes | YB06220051 | Cylindrical stopper | Kit | 4 | |
32 | https://store.amsrobotics.co.uk/product/belrobotics/yb01000003rubber | Yes | YB01000003 | Rubber | Battery 110x20 | 2 | Not use when using battery heater |
31 | https://store.amsrobotics.co.uk/product/belrobotics/yb90705020-Spacer-M5x20- | Yes | YB90705020 | Spacer M5x20 | 4 | ||
30 | https://store.amsrobotics.co.uk/product/belrobotics/yb03300078toolcable | Yes | YB03300078 | Tool cable | 1 | ||
59 | https://store.amsrobotics.co.uk/product/belrobotics/yb01200052-Coild-sleeve-Dia>4,-L:-0.1m | Yes | YB01200052 | Coild sleeve | Dia>4, L: 0.1m | 1 | |
29 | https://store.amsrobotics.co.uk/product/belrobotics/yb03300075centralcoilcable | Yes | YB03300075 | Central coil cable | 1 | ||
28 | https://store.amsrobotics.co.uk/product/belrobotics/yb03300074powercableltransmission | Yes | YB03300074 | Power cable, L | Transmission | 1 | |
27 | https://store.amsrobotics.co.uk/product/belrobotics/yb03300073powercablertransmission | Yes | YB03300073 | Power cable, R | Transmission | 1 | |
26 | https://store.amsrobotics.co.uk/product/belrobotics/yb03300072signalmotorcabletransmissionl | Yes | YB03300072 | Signal motor cable | Transmission L | 1 | |
25 | https://store.amsrobotics.co.uk/product/belrobotics/yb03300071actuatorcable | Yes | YB03300071 | Actuator cable | 1 | ||
24 | https://store.amsrobotics.co.uk/product/belrobotics/yb03300070signalmotorcabletransmissionr | Yes | YB03300070 | Signal motor cable | Transmission R | 1 | |
23 | https://store.amsrobotics.co.uk/product/belrobotics/yb70104000washerm4 | Yes | YB70104000 | Washer M4 | toothed | 1 | |
22 | https://store.amsrobotics.co.uk/product/belrobotics/yb50604006screwm4x6 | Yes | YB50604006 | Screw M4x6 | Hex socket head | 1 | |
21 | https://store.amsrobotics.co.uk/product/belrobotics/yb51904016boltm4x8 | Yes | YB51904016 | Bolt M4x16 | 2 | ||
20 | https://store.amsrobotics.co.uk/product/belrobotics/yb00000031connector40pfix | Yes | YB00000031 | Connector 40p fix. | 2 | ||
19 | https://store.amsrobotics.co.uk/product/belrobotics/yb03900005fuse | Yes | YB03900005 | Fuse | 15A | 2 | |
18 | https://store.amsrobotics.co.uk/product/belrobotics/yb03900004fuse | Yes | YB03900004 | Fuse | 5A | 1 | |
17 | https://store.amsrobotics.co.uk/product/belrobotics/yb03900003fuse | Yes | YB03900003 | Fuse | 2A | 6 | |
16 | https://store.amsrobotics.co.uk/product/belrobotics/yb03200007peripheralboard | Yes | YB03200007 | Peripheral board | V2.3D | 1 | includes items 17-19 |
15 | https://store.amsrobotics.co.uk/product/belrobotics/yb01200019cablebushing | Yes | YB01200019 | Cable bushing | Black 25x25x8 | 1 | |
14 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb03300069 | Yes | YB03300069 | Battery cable | 1 | ||
13 | https://store.amsrobotics.co.uk/product/belrobotics/yb50505016screwm5x16 | Yes | YB50505016 | Screw M5x16 | Self-forming,St | 2 | |
12 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb03300068 | Yes | YB03300068 | Power supply cable | Peripheral board | 1 | |
11 | https://store.amsrobotics.co.uk/product/belrobotics/yb00200002hexagonalspacer | Yes | YB00200002 | Hexagonal spacer | M/F 6mm | 1 | |
10 | https://store.amsrobotics.co.uk/product/belrobotics/yb01200013pcbsupport | Yes | YB01200013 | PCB support | M4 h=6,4mm | 5 | |
9 | https://store.amsrobotics.co.uk/product/belrobotics/labelonoff | Yes | YB04000021 | Label, ON-OFF | Horizontal | 1 | |
8 | https://store.amsrobotics.co.uk/product/belrobotics/yb03500004sealingcap | Yes | YB03500004 | Sealing cap | Main switch | 1 | |
7 | https://store.amsrobotics.co.uk/product/belrobotics/yb03500000br11335maintoggleswitchdubblepole | Yes | YB03500000 | Main switch | 1 | ||
6 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb01500012 | Yes | YB01500012 | Anti-condensing foam | 1 | ||
5 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb80005000 | Yes | YB80005000 | Nut M5 | 4 | ||
4 | https://store.amsrobotics.co.uk/product/belrobotics/yb70005000washerm5 | Yes | YB70005000 | Washer M5 | 4 | ||
3 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb01200038 | Yes | YB01200038 | Cable duct | 25x30mm l=66cm | 1 | |
2 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb01500014 | Yes | YB01500014 | EPDM foam | Closure housing | 1 | |
1 | https://store.amsrobotics.co.uk/product/belrobotics/belroboticspart-yb00400004 | Yes | YB00400004 | Electrical box | Assembled | 1 | |
60 | https://store.amsrobotics.co.uk/product/belrobotics/yb06220105-Electrical-box-kit-with-rid-foam | Yes | YB06220105 | Electrical box kit | with rid foam | 1 | Includes items 1,2 |
